This is a Flip Lock ZIF connector, which has extremely light weight, easy soldering on PCB, conductive traces on the PCB can run under the connector, easy FPC insertion and reliable electrical connection, accepts standard thickness FPC, allows board placement with automatic equipment.

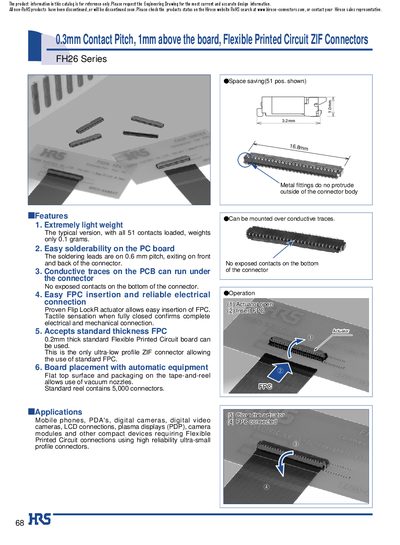

The FH26 Series is an ultra‑low profile ZIF connector designed for compact devices such as mobile phones, digital cameras, and LCD panels. It offers extremely light weight (typical version 0.1 g), 0.3 mm contact pitch, and the ability to accept standard 0.2 mm thick flexible printed circuits. The connector can be mounted over conductive traces and is supplied on tape‑and‑reel for automated placement.
The manual details the FPC insertion procedure, actuator operation, recommended soldering profiles, and a full set of precautions to ensure reliable electrical and mechanical connections. It also lists the electrical ratings, environmental limits, and packaging specifications for the FH26 family.
| Contact pitch | 0.3 mm |
|---|---|
| Number of contacts | 13, 21, 23, 25, 27, 33, 35, 39, 41, 45, 51, 57, 71 |
| Typical weight | 0.1 g |
| Current rating | 0.2 A DC |
| Voltage rating | 30 V AC |
| Operating temperature range | -55 °C to +85 °C |
| Insulation resistance | ≥ 50 MΩ |
| Contact resistance | ≤ 100 mΩ |
| Recommended FPC thickness | 0.2 mm ± 0.03 mm |
| Tape‑and‑reel packaging | 5,000 pieces per reel |
The actuator can rotate up to 135 degrees; further rotation is not allowed.
Manual soldering should be performed at 350 °C ± 10 °C for about 5 seconds.
The contact resistance must not exceed 100 mΩ.
A fully populated 51‑contact FH26 connector weighs approximately 0.1 gram.
