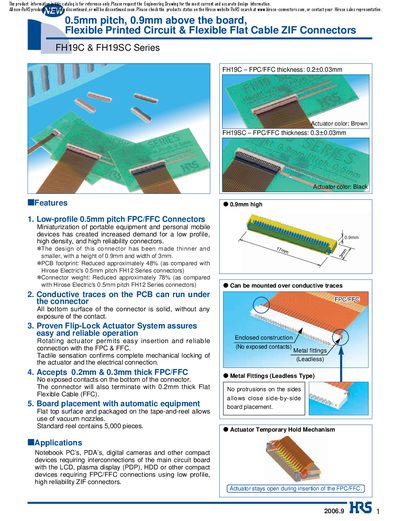

The FH19C and FH19SC series flexible printed circuit and flexible flat cable ZIF connectors are low-profile, high-density, and high-reliability connectors that are ideal for miniaturized portable equipment and personal mobile devices.
The FH19C and FH19SC series provide a low‑profile, high‑density solution for connecting flexible printed circuits (FPC) and flexible flat cables (FFC) in compact devices such as notebooks, PDAs, and digital cameras. The connectors feature a 0.5 mm pitch, 0.9 mm height above the board, and a flip‑lock actuator that ensures reliable insertion and removal.
Technical data include current rating of 0.5 A DC, voltage rating of 50 V AC, insulation resistance of 500 MΩ min, and contact resistance of 100 mΩ max. The series supports 4 to 50 contacts, is available in gold‑flash or tin‑lead plated finishes, and is supplied on embossed tape reels of 5,000 pieces. Recommended soldering profiles and packaging dimensions are also provided.
| Pitch | 0.5 mm |
|---|---|
| Height above board | 0.9 mm |
| Current rating | 0.5 A DC |
| Voltage rating | 50 V AC |
| Operating temperature range | -55 °C to +85 °C |
| Insulation resistance | 500 MΩ min |
| Contact resistance | 100 mΩ max |
| Reel packaging | 5,000 pieces per reel |
The connectors are rated for up to 0.5 A DC.
They are supplied on embossed tape reels containing 5,000 pieces each.
