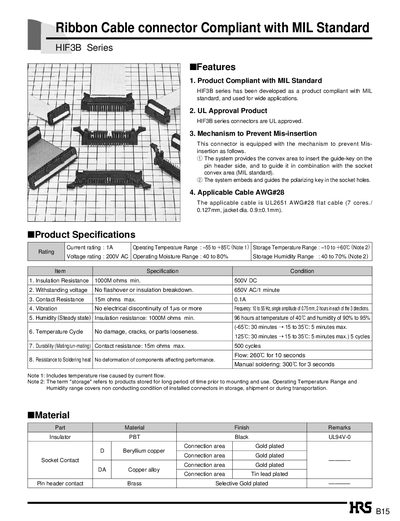

B15 Ribbon Cable connector compliant with MIL Standard HIF3B series features and characteristics
The HIF3B series connectors are MIL‑standard compliant, UL approved, and feature a mis‑insertion prevention mechanism with guide‑keys on both the socket and pin‑header sides. They are designed for 28‑AWG flat cable (7 cores) and support a current rating of 1 A.
Electrical specifications include a 200 V AC voltage rating, insulation resistance of 1000 MΩ min at 500 V DC, and a contact resistance of 15 mΩ max. The connectors operate from –55 °C to +85 °C and can be stored from –10 °C to +60 °C. Mechanical durability is ensured by 500 mating cycles and resistance to soldering heat up to 300 °C.
| Current rating | 1 A |
|---|---|
| Voltage rating | 200 V AC |
| Operating Temperature Range | -55 °C to +85 °C |
| Storage Temperature Range | -10 °C to +60 °C |
| Insulation Resistance | 1000 MΩ min at 500 V DC |
| Withstanding Voltage | 650 V AC for 1 min |
| Contact Resistance | 15 mΩ max |
The connector is rated for a current of 1 A.
It is rated for 200 V AC.
The connector operates from –55 °C to +85 °C.
Insulation resistance is at least 1000 MΩ at 500 V DC.
