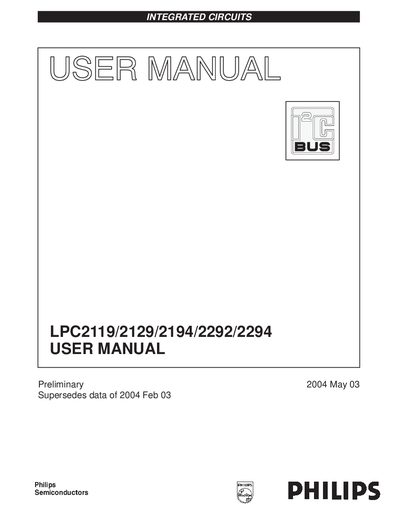

This manual provides a comprehensive description of the Philips LPC2119, LPC2129, LPC2194, LPC2292, and LPC2294 microcontrollers. It includes an overview of the ARM7TDMI‑S core, on‑chip flash and SRAM, peripheral blocks, and power‑management features.
The document details register maps, memory addressing, peripheral interfaces (UART, I2C, SPI, CAN, PWM, ADC, Real‑Time Clock), debugging support (EmbeddedICE, RealMonitor), and configuration options for boot loaders and system control. It also contains licensing notes, usage restrictions, and contact information for Philips Semiconductors.
| Processor core | ARM7TDMI‑S |
|---|
No, they are not designed for life‑support applications and use is at the customer's own risk.
