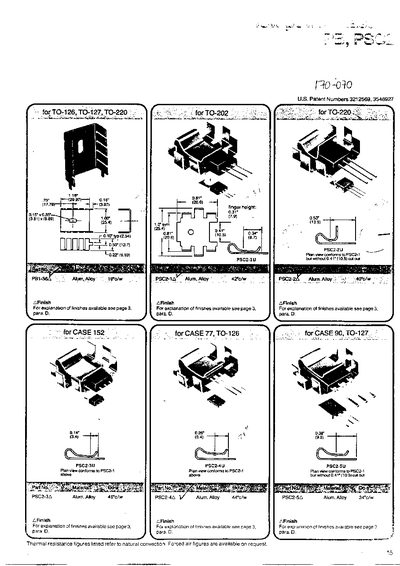

The sheet lists the available surface finishes (e.g., A Para. D.) for the thermal‑alloy material and references detailed finish tables on page 3. It also shows plan‑view drawings that conform to the PSC2‑1 layout, with variations for specific package cuts.
Key technical data include package dimensions (0.15" × 0.35"), finger height (0.31"), alloy thermal conductivity (46 °C/W) and thermal‑resistance figures for natural convection, with forced‑air values available on request.
| Package dimensions | 0.15" x 0.35" (3.81 mm x 8.89 mm) |
|---|---|
| Finger height | 0.31" |
| Alloy thermal conductivity | 46 °C/W |
| Thermal resistance (natural convection) | Refer to figures in the sheet |
| Available finishes | A Para. D., etc. (see page 3) |
The sheet references several finishes such as A Para. D.; detailed tables are on page 3.
The dimensions are 0.15 in × 0.35 in (3.81 mm × 8.89 mm).
The finger height is 0.31 in.
The alloy has a thermal conductivity of 46 °C/W.
