This document describes a heat sink suitable for TO-220 packages. It features an economy narrow base, low profile, channel style design. The thermal resistance value is 24.00, based on a 75°C rise in natural convection. Detailed information about standard products is provided, along with options for customization.
The Aavid Thermalloy 507302B00000G is a low‑profile thermal interface material designed for use with TO‑220 semiconductor packages. It provides a reliable thermal path between the device and a heat‑sink, helping to keep junction temperatures within safe limits.

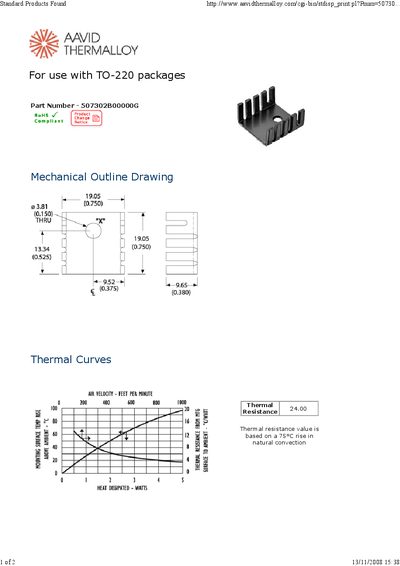

The sheet includes mechanical outline dimensions, thermal resistance values, and air‑velocity performance curves. For custom solutions or additional options, customers can contact an Aavid sales representative or local distributor.
| Part Number | 507302B00000G |
|---|---|
| Thermal Resistance | 24.00 °C/W |
| Mechanical Outline Width | 3.81 mm |
The part number is 507302B00000G.
Contact your local Aavid representative or sales rep via phone (603) 224‑9988 or email [email protected].
