TV40G is a TO-220 package heat sink produced by Aavid Thermalloy. Black anodized, the heat sink features a narrow channel airflow design with twisted fins.
The TV40G is a narrow‑channel style thermal compound designed for use with TO‑220 semiconductor packages. It features a twisted‑fin heat sink with an anodized finish and is intended for applications requiring efficient heat dissipation.

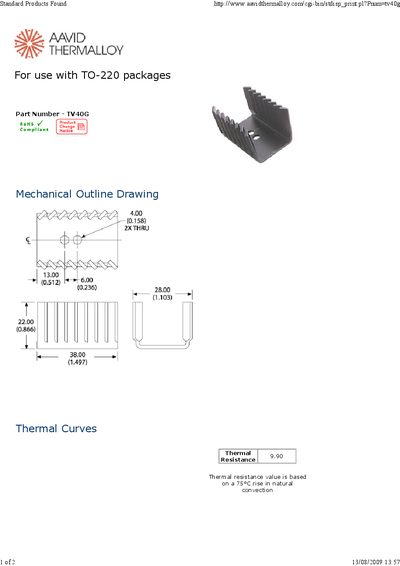

The leaflet includes a mechanical outline drawing, thermal curves, air‑velocity data, and key specifications such as thermal resistance (9.90) based on a 75 °C temperature rise in natural convection. Contact information for technical support and custom solutions is also provided.
| Part Number | TV40G |
|---|---|
| Thermal Resistance | 9.90 |
| Finish | Anodize |
The part number is TV40G.
The thermal resistance is 9.90, based on a 75 °C rise in natural convection.
