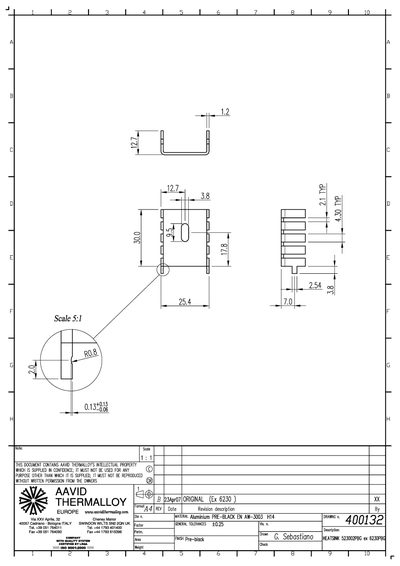

This single‑page document provides a technical drawing for AAVID THERMALLOY. It includes the scale (5:1 and 1:1), material specification (Aluminium PRE‑BLACK EN AW‑3003), and general tolerances.
The drawing also lists reference numbers, revision dates, and a weight check section, indicating it is intended for engineering and manufacturing use under confidentiality restrictions.
| Material | Aluminium PRE‑BLACK EN AW‑3003 |
|---|---|
| General Tolerances | 0.25 |
The drawing specifies Aluminium PRE‑BLACK EN AW‑3003 as the material.
General tolerances are listed as 0.25.
