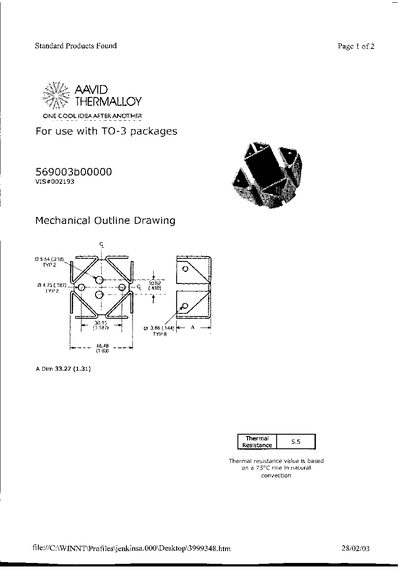

The 569003b00000 heat sink is designed for TO-3 packages and provides a thermal resistance of 2.5 °C/W on a 75 °C rise in natural convection. Mechanical outline drawings and thermal curves are included to aid in thermal management design.
Aavid offers customization options for finishes, mounting, and attachment methods. For technical assistance or custom solutions, contact the local representative at (603) 223‑1921 or email [email protected].
| Thermal Resistance | 2.5 °C/W |
|---|---|
| Dimensions (A) | 33.27 mm (1.31 mm) |
| Dimensions (B) | 46.48 mm (3.83 mm) |
| Part Number | 569003b00000 |
| Finish | Anodize |
The heat sink has a thermal resistance of 2.5 °C/W on a 75 °C rise in natural convection.
The A dimension is 33.27 mm (1.31 mm) and the B dimension is 46.48 mm (3.83 mm).
The part number is 569003b00000 and it comes with an anodized finish.
