The tv1500 heat sink from Aavid Thermalloy is offered as a standard product for use with TO‑220 and TO‑126 semiconductor packages. It features a black, no‑added‑finish surface and is supplied without mounting hardware.

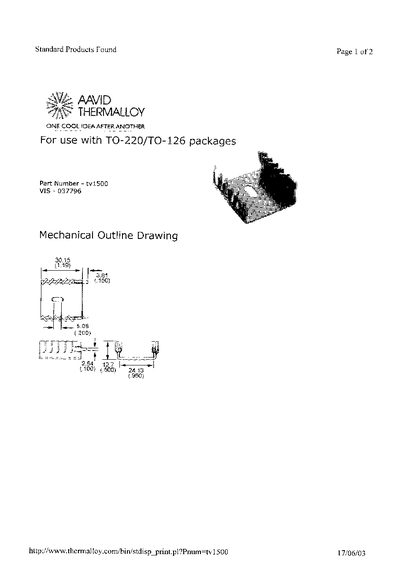

Thermal performance data, including a thermal resistance of 14.2 °C/W based on a 75 °C temperature rise, are provided along with a mechanical outline drawing. Custom variations, finishes, and attachment options are available by contacting a local representative.
| Finish | Black |
|---|---|
| Thermal Resistance | 14.2 °C/W |
| Thermal Resistance Basis | Based on a 75 °C temperature rise |
It is intended for TO‑220 and TO‑126 packages.
Contact your local Aavid Thermalloy representative for custom options.
