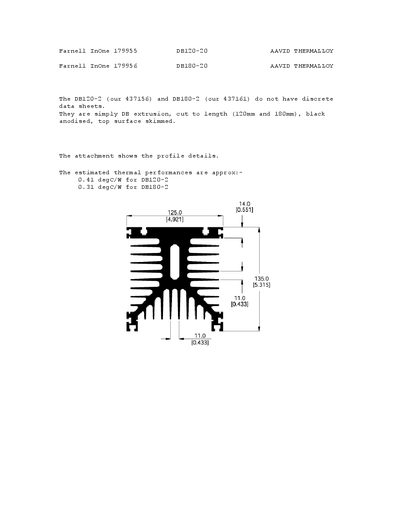

DB120-20 and DB180-20 are black anodised DB extrusions, cut to length 120mm and 180mm, with top surface skimmed.
The AAVID Thermal Alloy DB120-20 and DB180-20 are black anodised extrusion profiles, cut to length of 120 mm and 180 mm respectively, with a skimmed top surface.
Estimated thermal resistance is approximately 0.41 °C/W for the DB120-20 and 0.31 °C/W for the DB180-20.
| Length | 120 mm (DB120-20) |
|---|---|
| Length | 180 mm (DB180-20) |
| Finish | black anodised |
| Top surface | skimmed |
| Thermal resistance | 0.41 °C/W (DB120-20) |
| Thermal resistance | 0.31 °C/W (DB180-20) |
The DB120-20 is 120 mm long and the DB180-20 is 180 mm long.
The DB120-20 has an estimated thermal resistance of about 0.41 °C/W, while the DB180-20 is about 0.31 °C/W.
