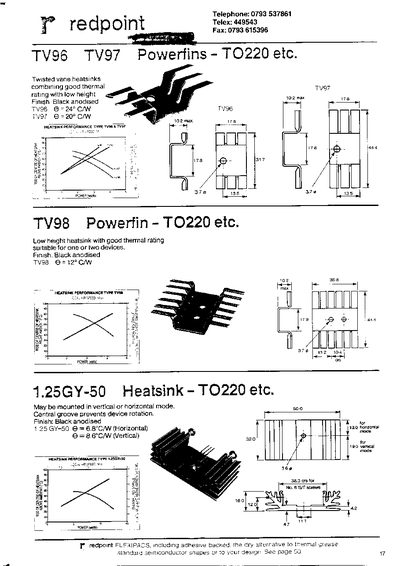

The sheet lists several heatsink models such as TV96, TV97, TV98 and the 125GY‑50, all featuring a black anodised finish and low‑profile designs suitable for TO‑220 style devices. Each model is described with its thermal resistance values and recommended mounting orientations.
Performance data include thermal resistance values ranging from 24 °C/W for TV96 down to 6.8 °C/W for the horizontal 125GY‑50 version, as well as power handling information. The 125GY‑50 can be mounted either horizontally or vertically, with the vertical orientation offering a slightly higher thermal resistance.
| TV96 thermal resistance | 24 °C/W |
|---|---|
| TV98 thermal resistance | 12 °C/W |
| 125GY‑50 (horizontal) thermal resistance | 6.8 °C/W |
| 125GY‑50 (vertical) thermal resistance | 8.6 °C/W |
| Heatsink finish | Black anodised |
The TV96 heatsink has a thermal resistance of 24 °C/W.
Yes, the 125GY‑50 can be mounted vertically with a thermal resistance of 8.6 °C/W.
All listed heatsinks have a black anodised finish.
