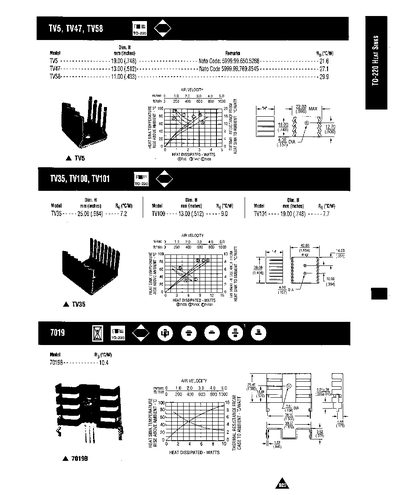

This one‑page datasheet provides the key thermal performance figures for AAVID Thermaloy 316031 and related TV series models. It lists dimensions, thermal resistance (Ra) and the corresponding heat dissipation in watts for a range of air velocities.
The tables cover several model numbers (TV5, TV47, TV58, TV35, TV100, TV101) and give the thermal resistance in °C/W together with the heat that can be dissipated at specified air‑flow rates.
| TV5 Thermal Resistance (Ra) | 19.00 °C/W |
|---|---|
| TV47 Thermal Resistance (Ra) | 13.00 °C/W |
| TV58 Thermal Resistance (Ra) | 11.00 °C/W |
| Air Velocity Range | 0 – 1000 ft/min |
The TV5 model has a thermal resistance of 19.00 °C/W.
The data sheet lists air velocities from 0 to 1000 ft/min.
