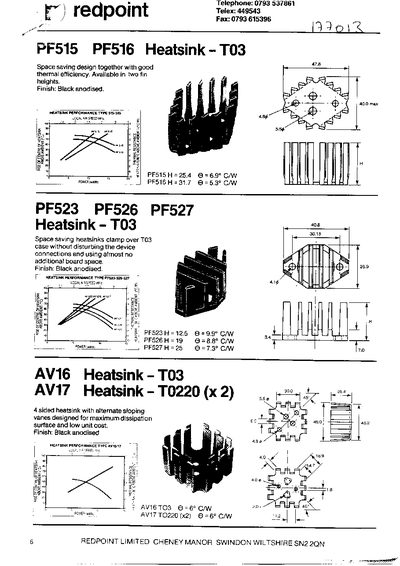

The Redpoint heatsink series offers space‑saving designs with a black anodised finish. Models PF515, PF516, PF523, PF526 and PF527 are T03‑type heatsinks that clamp over the T03 case without disturbing device connections, while AV16 and AV17 provide a four‑sided design with alternate sloping vanes for maximum dissipation.
Thermal resistance values range from 5.3 °C/W (PF516) to 9.9 °C/W (PF523). Standard hole patterns and installation notches are provided for easy mounting, and ordering codes allow selection of extrusion length and type. All parts are supplied by Redpoint Limited in the United Kingdom.
| Finish | Black anodised |
|---|---|
| Thermal resistance PF515 | 6.9 °C/W |
| Thermal resistance PF516 | 5.3 °C/W |
| Thermal resistance PF523 | 9.9 °C/W |
| Thermal resistance PF526 | 8.8 °C/W |
| Thermal resistance PF527 | 7.3 °C/W |
| Thermal resistance AV16 | 6.0 °C/W |
| Thermal resistance AV17 | 6.0 °C/W |
| Standard hole diameter | 4.1 mm |
The PF516 heatsink has a thermal resistance of 5.3 °C/W.
All listed heatsinks are finished in black anodised coating.
The standard hole pattern uses a 4.1 mm hole diameter.
