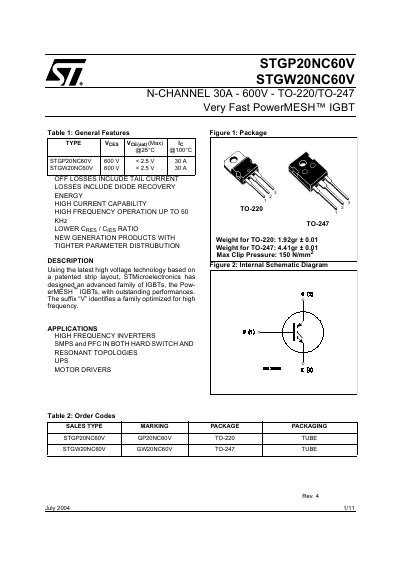

STGP20NC60V STGW20NC60V N-CHANNEL 30A - 600V - TO-220/TO-247 Very Fast PowerMESH™ IGBT, This product has high current capability, high frequency operation capability and is suitable for high frequency inverters, SMPS and PFC etc.
The STGP20NC60V and STGW20NC60V are N‑channel 30 A, 600 V PowerMESH™ IGBT devices designed for high‑frequency inverters, SMPS, PFC, UPS and motor‑driver applications. The “V” suffix denotes optimisation for operation up to 50 kHz, offering low CRES/CIES ratio and high current capability.
Key specifications include a collector‑emitter breakdown voltage of 600 V, continuous collector current of 30 A (typical) at 25 °C, pulsed current rating of 100 A, total power dissipation of 200 W, and gate‑threshold voltage between 3.75 V and 5.75 V. Devices are offered in TO‑220 and TO‑247 packages with detailed thermal resistance data.
| Collector‑Emitter Voltage (VCE(sat)) | 600 V |
|---|---|
| Pulsed Collector Current (ICM) | 100 A |
| Gate‑Emitter Threshold Voltage (VGE(th)) | 3.75 V – 5.75 V |
| Package Options | TO‑220, TO‑247 |
The devices are rated for a maximum collector‑emitter voltage of 600 V.
Both TO‑220 and TO‑247 packages are offered.
