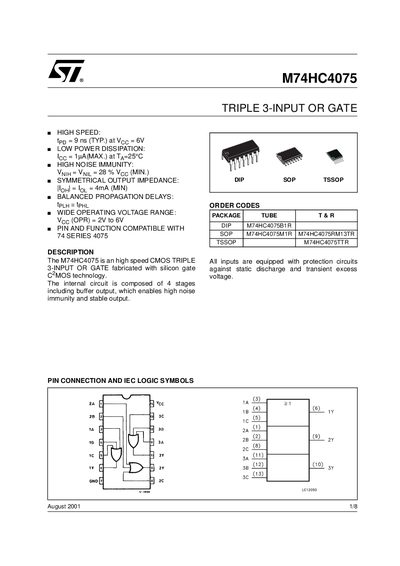

The M74HC4075 is a high-speed CMOS triple 3-input OR gate fabricated with silicon gate C2MOS technology. The internal circuit is composed of 4 stages including a buffer output, which enables high noise immunity and stable output. All inputs are equipped with protection circuits against static discharge and transient excess voltage.
The M74HC4075 is a high‑speed CMOS triple 3‑input OR gate with a wide operating voltage range of 2 V to 6 V, low power dissipation, and high noise immunity. It is pin‑compatible with the 74 series 4075 and available in DIP‑14, SOP, and TSSOP packages.
The document provides absolute maximum ratings, recommended operating conditions, DC and AC electrical characteristics, capacitive parameters, and mechanical dimensions for each package type. Legal disclaimer and copyright information are included at the end.
| Supply voltage range | 2 V to 6 V |
|---|---|
| Maximum power dissipation | 500 mW at 65 °C |
| Storage temperature range | -65 °C to +150 °C |
The device operates from 2 V to 6 V.
Maximum power dissipation is 500 mW at 65 °C (derated to 300 mW at higher temperatures).
