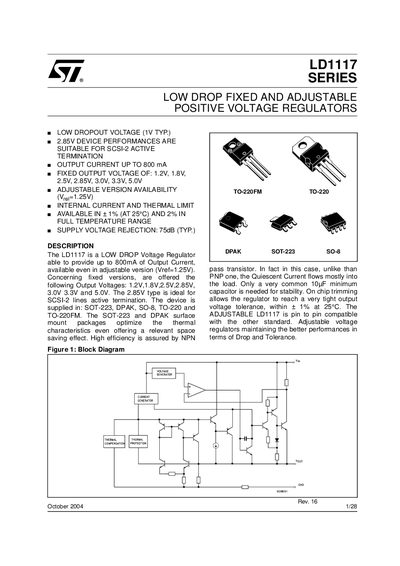

The LD1117 series is a low drop positive voltage regulator, available in fixed and adjustable version. The device can provide up to 800mA of output current and is supplied in different packages.
The LD1117 series provides low‑dropout voltage regulation with output currents up to 800 mA. Fixed versions are available with output voltages of 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.0 V, 3.3 V and 5.0 V, while the adjustable version uses a 1.25 V reference.
The devices are supplied in several packages (SOT‑223, DPAK, SO‑8, TO‑220, TO‑220FM) and feature low dropout voltage (typ. 1 V), high supply‑voltage rejection (75 dB typ.) and robust thermal performance. Detailed electrical characteristics, absolute maximum ratings and ordering information are provided in the tables.
| Maximum output current | 800 mA |
|---|---|
| Fixed output voltages | 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.0 V, 3.3 V, 5.0 V |
| Adjustable reference voltage | 1.25 V |
| Typical dropout voltage | 1 V |
| Supply voltage rejection (typ.) | 75 dB |
| Maximum input voltage | 15 V |
The LD1117 can deliver up to 800 mA of output current.
Fixed output voltages are 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.0 V, 3.3 V and 5.0 V.
The adjustable version uses a reference voltage of 1.25 V.
Typical dropout voltage is about 1 V.
