The Z01 series is suitable for general purpose AC switching applications, such as home appliances and fan speed controllers. It offers different gate current sensitivities for optimized performance when controlled directly from microcontrollers.
The Z01 series triacs are designed for general‑purpose AC switching applications such as home appliances (electrovalve, pump, door lock, small lamp control) and fan‑speed controllers. Different gate‑current sensitivities (3 mA, 5 mA, 10 mA, 25 mA) are offered to optimise performance when driven directly from microcontrollers.

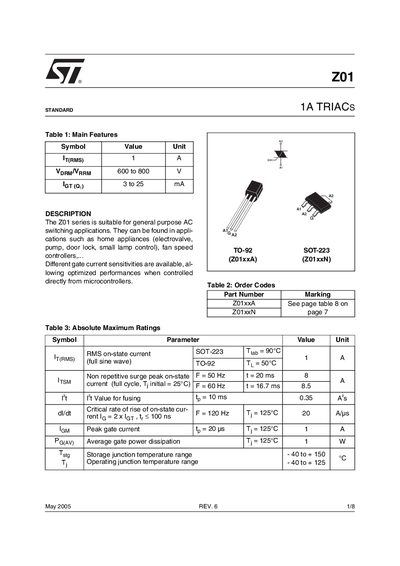

The document lists electrical characteristics, absolute maximum ratings, thermal resistances, mechanical package data for TO‑92 and SOT‑223 variants, and detailed ordering information including part numbers, sensitivities, voltage ratings and packaging options.
| RMS on‑state current (I_RMS) | 1 A |
|---|---|
| Voltage rating (V_RMS) | 600 V to 800 V |
| Thermal resistance, junction‑to‑tab (SOT‑223) | 25 °C/W |
| Package dimension A (min) | 1.80 mm |
The series offers different gate‑current sensitivities, including 3 mA, 5 mA, 10 mA and 25 mA, identified by the part‑number suffixes.
The absolute maximum RMS on‑state current rating is 1 A.
