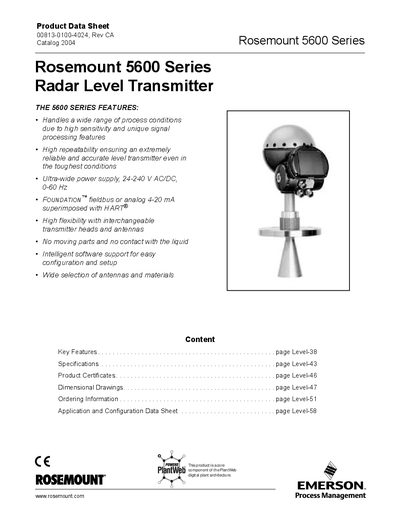

This product is a core component of the PlantWeb digital plant architecture. The 5600 series features the following: 1. Handles a wide range of process conditions due to high sensitivity and unique signal processing features; 2. High repeatability ensuring an extremely reliable and accurate level transmitter even in the toughest conditions; 3. Ultra-wide power supply, 24-240 V AC/DC, 0-60 Hz; 4. FOUNDATION™ fieldbus or analog 4-20 mA superimposed with HART®; 5. High flexibility with interchangeable transmitter heads and antennas; 6. No moving parts and no contact with the liquid; 7. Intelligent software support for easy configuration and setup; 8. Wide selection of antennas and materials.
The Rosemount 5600 Series is an intelligent non‑contacting radar level transmitter that uses a 10 GHz FMCW radar principle for high‑accuracy level measurement. It offers a wide power‑supply range (24‑240 V AC/DC, 0‑60 Hz), interchangeable heads and antennas, and supports HART, FOUNDATION fieldbus, and 4‑20 mA analog outputs.
The datasheet includes detailed specifications such as instrument accuracy (+0.2 in/±5 mm), resolution (0.04 in/1 mm), repeatability (+0.04 in/±1 mm), measuring range (0‑164 ft/0‑50 m), and power consumption (max 10 W). Installation guidance covers mechanical mounting, antenna selection, and system integration via HART communicator, 2210 display unit, AMS, DeltaV, or PC‑based Radar Master software.
| Operating principle | 10 GHz FMCW radar |
|---|---|
| Microwave output power | Max 1.0 mW |
| Instrument accuracy | +0.2 in (±5 mm) |
| Resolution | 0.04 in (1 mm) |
| Repeatability | +0.04 in (±1 mm) |
| Measuring range | 0‑164 ft (0‑50 m) |
| Update time | 100 ms |
| Power supply voltage | 24‑240 V AC or DC, 0‑60 Hz |
| Power consumption | Maximum 10 W, Nominal 5 W |
| Primary output | HART + 4‑20 mA (IS or non‑IS) |
| Analog output range | 4‑20 mA |
| Galvanic isolation | >1500 V RMS or DC |
| Temperature drift | +28 ppm/°F (+50 ppm/°C) |
It uses a 10 GHz FMCW (Frequency Modulated Continuous Wave) radar principle for level measurement.
The transmitter can measure from 0 to 164 ft (0 to 50 m).
It accepts an ultra‑wide input range of 24‑240 V AC or DC, 0‑60 Hz.
Configuration can be done via a HART communicator, the 2210 Display Unit, AMS, DeltaV, or PC‑based Radar Master software (with a HART modem).
