The LPS60-M series 60 watt medical power supply has medical safety approvals and is suitable for critical business applications that require uninterrupted power. This product has a compact 3 x 5 inch footprint, supports remote sensing, built-in EMI filter, low output ripple, adjustable output voltage, overload protection, and 110 kHz switching frequency.
The LPS60-M Series is a medical‑grade power module offering 60‑80 W output with wide input voltage range, low ripple, remote‑sense capability, and built‑in EMI filtering. It is designed for business‑critical continuity in medical equipment, meeting multiple safety and electromagnetic compatibility standards.

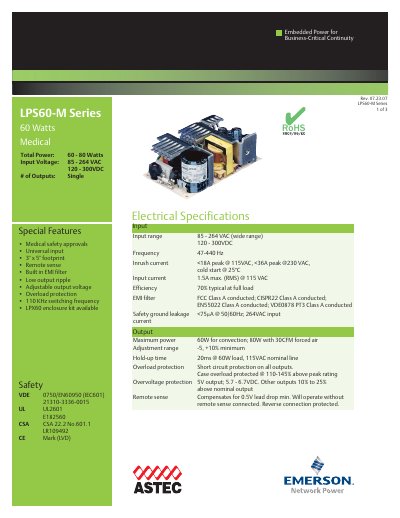

The manual includes special features, electrical and safety specifications, mechanical drawings, environmental limits, power‑derating curves, ordering information, and pin assignments. It also lists connector part numbers and provides guidance for installation and operation.
| Total Power | 60‑80 W |
|---|---|
| Input Voltage (AC) | 85‑264 VAC |
| Input Voltage (DC) | 120‑300 VDC |
| Efficiency | 70 % typical at full load |
| Switching Frequency | 110 kHz |
| Hold‑up Time | 20 ms @ 60 W load |
| Operating Temperature | 0 °C to 50 °C |
| MTBF | >550,000 hours at full load, 25 °C |
| Remote Sense | Compensates for 0.5 V lead drop |
The module accepts a wide AC input range of 85 VAC to 264 VAC and a DC range of 120 VDC to 300 VDC.
It delivers up to 60 W with convection cooling and up to 80 W when using 30 CFM forced‑air cooling.
Yes, remote sense compensates for a 0.5 V lead drop and works even if the remote‑sense connection is not attached.
