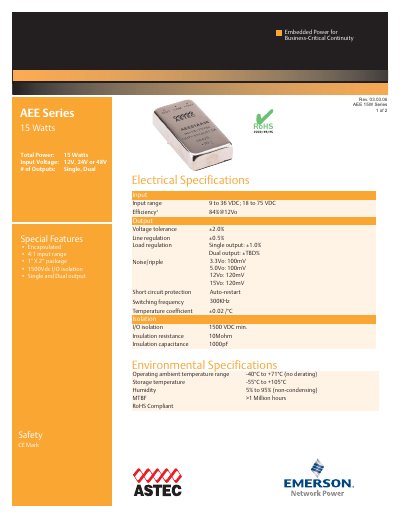

The AEE 15W series is Emerson Network Power's embedded power solution for business-critical continuity applications. The series features 4:1 input range, 1500Vdc I/O isolation, single/dual output design, which meets various application scenarios.
The AEE 15W Series provides compact, encapsulated power for business‑critical continuity applications. It offers a 1" × 2" package, 4:1 input voltage range, and selectable single or dual outputs with high efficiency and tight voltage regulation.
Key specifications include 1500 VDC I/O isolation, operating temperature from –40 °C to +71 °C, and a MTBF exceeding one million hours. Various model numbers provide different output voltage options, and the series complies with RoHS and CE requirements.
| Total Power | 15 Watts |
|---|---|
| Input Voltage | 12 V, 24 V or 48 V |
| I/O Isolation | 1500 VDC (minimum) |
| Operating Temperature | -40 °C to +71 °C |
| MTBF | >1 Million hours |
| Switching Frequency | 300 kHz |
| Line Regulation | ±0.5 % |
| Load Regulation (single output) | ±1.0 % |
| Noise / Ripple (12 V output) | 120 mV |
The module accepts 12 V, 24 V, or 48 V input.
It provides a minimum I/O isolation of 1500 VDC.
It operates from –40 °C up to +71 °C.
The module is rated for a mean time between failures of over one million hours.
