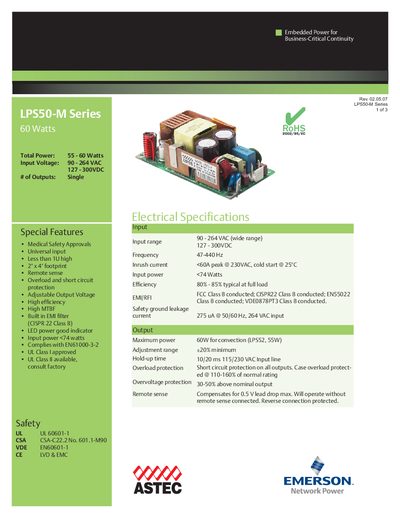

The LPS50-M Series 60 watts embedded power supplies feature medical safety approvals, wide range input voltage, high efficiency, high MTBF, built-in EMI filter (CISPR 22 Class B), and are suitable for various business critical business scenarios.
This handbook describes the LPS50-M Series power supplies, covering input voltage ranges of 90‑264 VAC and 127‑300 VDC, total power of 55‑60 W, and typical efficiency of 80‑85% at full load. It includes safety certifications such as UL, CSA, VDE, and IEC60601‑1, as well as features like remote sense, adjustable output voltage, and overload protection.
Additional sections provide environmental ratings (operating temperature 0‑50 °C, storage –40 °C to +85 °C), mechanical drawings, ordering information for models LPS52‑M through LPS58‑M, pin assignments, and connector options. The document also lists MTBF of over 550,000 hours and compliance with EMI/RFI standards.
| Total Power | 55 - 60 Watts |
|---|---|
| Input Voltage (AC) | 90-264 VAC |
| Input Voltage (DC) | 127-300 VDC |
| Frequency | 47-440 Hz |
| Input Power | <74 Watts |
| Efficiency | 80% - 85% typical at full load |
| MTBF | >550,000 hours |
| Overload Protection | 110-160% of normal rating |
| Remote Sense | Supported |
| Adjustable Output Voltage | Supported |
The series accepts 90‑264 VAC or 127‑300 VDC input voltage.
Typical efficiency is 80% to 85% at full load.
The demonstrated MTBF is over 550,000 hours at full load and 25 °C ambient.
