The LPS60 Series is a 60-watt embedded power supply with various features, including universal input, compact size, remote sense, built-in EMI filter, low output ripple, adjustable output voltage, and overload protection.
The LPS60 Series delivers 60‑80 W of embedded power for business‑critical continuity, featuring a universal input range of 85‑264 Vac (120‑300 Vdc), single output, remote sense, built‑in EMI filter, and low output ripple. It operates with a 110 kHz switching frequency and includes overload, over‑voltage, and short‑circuit protection.

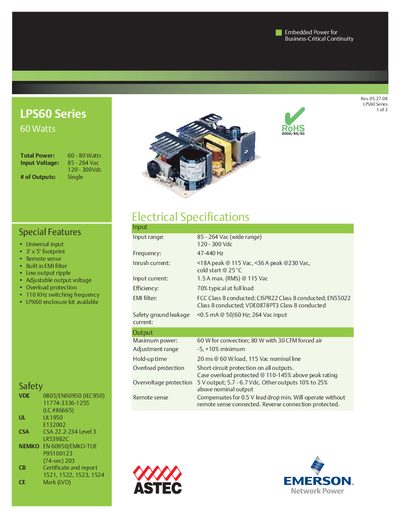

Technical data include efficiency of about 70 % at full load, hold‑up time of 20 ms at 60 W, MTBF of 950,000 hours, and certifications such as VDE, UL, CSA, CE, and NEMKO. The sheet also lists ordering information, connector pin assignments, and mechanical dimensions for easy integration.
| Total Power | 60 - 80 Watts |
|---|---|
| Input Voltage (AC) | 85 - 264 Vac |
| Input Voltage (DC) | 120 - 300 Vdc |
| Number of Outputs | Single |
| Switching Frequency | 110 kHz |
| Efficiency | 70 % typical at full load |
| Hold‑up Time | 20 ms @ 60 W load, 115 Vac nominal line |
| Overload Protection | Case overload protected @ 110‑145 % above peak rating |
| Operating Temperature | 0 °C to 50 °C ambient |
| Storage Temperature | -40 °C to +85 °C |
| MTBF | 950,000 hours at full load, 25 °C |
| Weight | 0.75 lbs (0.34 kg) |
The LPS60 Series accepts an AC input voltage of 85 – 264 Vac and a DC input of 120 – 300 Vdc.
It provides a single output.
The module operates at a switching frequency of 110 kHz.
