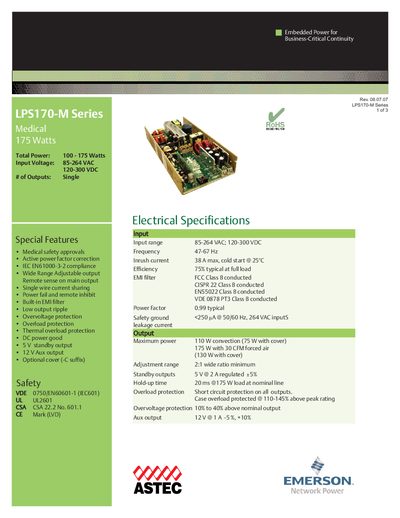

The document describes the features and characteristics of the Embedded Power for Business-Critical Continuity LPS170-M Series Medical 175 Watts, including medical safety approvals, active power factor correction, IEC EN61000-3-2 compliance, wide range adjustable output, remote sense on main output, single wire current sharing, power fail and remote inhibit, built-in EMI filter, low output ripple, overvoltage protection, overload protection, thermal overload protection, DC power good, 5V standby output, 12V aux output, and optional cover.
The LPS170-M Series is a medical‑grade power supply offering single‑output operation with total power from 100 to 175 W. It features active power‑factor correction, a built‑in EMI filter, remote sense, and optional cover for forced‑air cooling.
Key specifications include an input range of 85‑264 VAC or 120‑300 VDC, 75 % typical efficiency at full load, 0.99 power factor, and compliance with VDE, UL, CSA and CE safety standards. The unit provides a 5 V standby output, a 12 V auxiliary output, and over‑voltage and overload protection.
| Total Power | 100 - 175 Watts |
|---|---|
| Input Voltage (AC) | 85-264 VAC |
| Input Voltage (DC) | 120-300 VDC |
| Number of Outputs | Single |
| Efficiency (typical) | 75 % at full load |
| Power Factor (typical) | 0.99 |
| Output Ripple | <250 pA @ 50/60 Hz |
| Standby Output Voltage | 5 V |
| Auxiliary Output | 12 V @ 1 A |
| Overvoltage Protection Range | 10 % to 40 % above nominal |
| Weight | 1.8 lb |
| MTBF | >550,000 hours |
The unit accepts 85‑264 VAC or 120‑300 VDC input.
It complies with VDE 0750/EN60601-1, UL2601, CSA 22.2 No. 601.1 and carries the CE Mark.
The standby output provides 5 V.
The MTBF is demonstrated at greater than 550,000 hours at full load and 25 °C.
