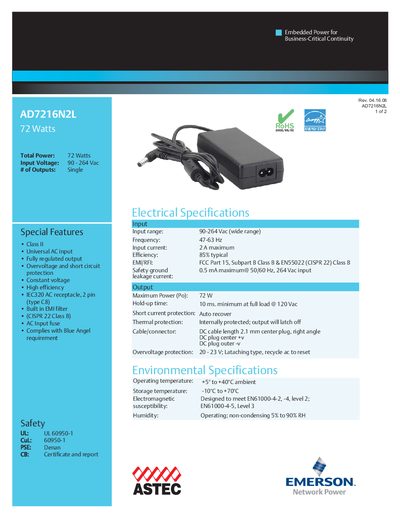

This document describes the features and characteristics of the AD7216N2L embedded power, including Class II, universal AC input, fully regulated output, overvoltage and short circuit protection, constant voltage, high efficiency, etc.
The AD7216N2L is an embedded power module designed for business‑critical continuity. It accepts a wide AC input range, delivers a fully regulated 20‑23 V output, and includes over‑voltage, short‑circuit, and thermal protection. The module meets UL 60950‑1, EN61000‑4‑2/‑4/‑5, and CISPR‑22 Class B requirements.
Key specifications include 72 W total power, 90‑264 Vac input, 85 % typical efficiency, and a 10 ms hold‑up time at full load. The unit operates from +5 °C to +40 °C ambient, stores from –10 °C to +70 °C, and weighs 0.65 lb (0.29 kg). Ordering information, mechanical drawing dimensions, and connector details are provided for integration.
| Total Power | 72 W |
|---|---|
| Input Voltage | 90 – 264 Vac |
| Input Frequency | 47 – 63 Hz |
| Input Current | 2 A max |
| Efficiency | 85 % typical |
| Hold‑up Time | 10 ms minimum at full load @ 120 Vac |
| Operating Temperature | +5 °C to +40 °C ambient |
| Storage Temperature | -10 °C to +70 °C |
| Weight | 0.65 lb (0.29 kg) |
| Dimensions (H × W × L) | 28.0 mm × 51 mm × 115.4 mm |
The AD7216N2L delivers up to 72 W of total output power.
It accepts a universal AC input range of 90 V to 264 V.
Yes, the module includes over‑voltage and short‑circuit protection.
