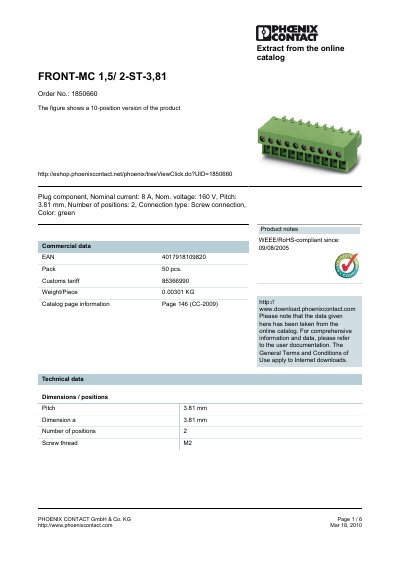

The FRONT-MC 1,5/ 2-ST-3,81 is a connector product from PHOENIX CONTACT. It has an 8 A rated current, a 160 V rated voltage, a screw connection interface and a green color.
The FRONT-MC 1,5/ 2-ST-3,81 is a 2‑position plug component with a screw connection, designed for nominal currents of 8 A and nominal voltages of 160 V. It features a 3.81 mm pitch, insulating material group I, and complies with UL 94 V0 flammability class. Technical data include rated surge voltages of 2.5 kV and recommended tightening torque between 0.22 Nm and 0.25 Nm.
The product is certified by CB, CSA, CUL, UL and VDE‑PZI and is available with various accessories such as marker pens, marker cards and compatible headers. Commercial details list an EAN of 4017918109820, a weight of 0.00301 kg per piece, and packaging of 50 pcs. For full documentation and ordering, refer to Phoenix Contact’s online catalog.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 2 |
| Connection type | Screw connection |
| Insulating material group | I |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated voltage (III/2) | 160 V |
| Tightening torque (min) | 0.22 Nm |
| Tightening torque (max) | 0.25 Nm |
| Inflammability class | UL 94 V0 |
| Weight per piece | 0.00301 kg |
| EAN | 4017918109820 |
| Certifications | CB, CSA, CUL, UL, VDE‑PZI |
The nominal current rating is 8 A.
The pitch is 3.81 mm.
It is certified by CB, CSA, CUL, UL and VDE‑PZI.
The recommended tightening torque is between 0.22 Nm and 0.25 Nm.
