The NTD4804N/D is a N-channel power MOSFET with a maximum voltage of 30V and a maximum current of 117A. It is mainly used in CPU power delivery, DC-DC converters and low side switching.
The NTD4804N is a single N‑channel power MOSFET rated for 30 V drain‑to‑source voltage and 117 A continuous drain current. It features low on‑resistance, low gate charge, and low capacitance to minimize conduction and switching losses.

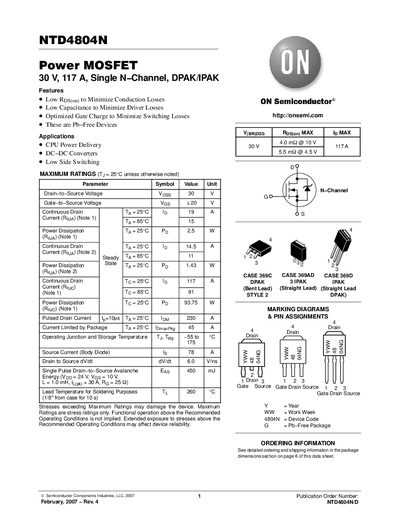

The datasheet provides maximum ratings, thermal resistance values, electrical characteristics, typical performance curves, package dimensions for DPAK and IPAK styles, and ordering information. All specifications are given for a junction temperature of 25 °C unless otherwise noted.
| Drain-to-Source Voltage (VDS) | 30 V |
|---|---|
| Gate-to-Source Voltage (VGS) | +20 V |
| Power Dissipation (PD) | 25 W |
| Junction-to-Case Thermal Resistance (RθJC) | 1.6 °C·W |
| Input Capacitance (Ciss) | 4490 pF |
The maximum drain‑to‑source voltage is 30 V.
It can handle a continuous drain current of up to 117 A at 25 °C.
Typical on‑resistance is about 3.4 mΩ at VGS = 11.5 V and ID = 30 A.
