The VND10BSP is a high side smart power solid state relay with features such as 14A output current, thermal shut-down protection, and under voltage protection.

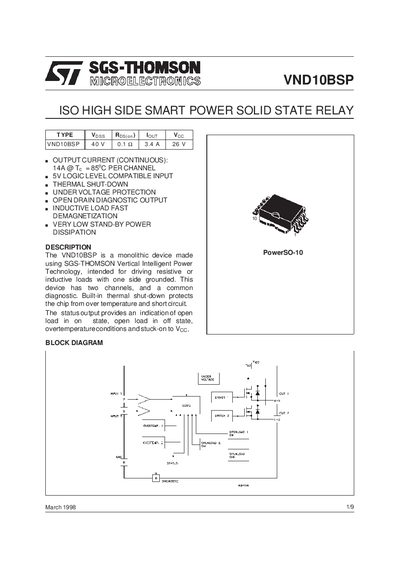

The VND10BSP is a monolithic high‑side solid‑state relay designed for driving resistive or inductive loads with one side grounded. It offers two channels, a common diagnostic output, and built‑in thermal shut‑down, under‑voltage protection, and fast demagnetization for inductive loads.
The manual includes absolute maximum ratings, electrical characteristics, connection diagrams, thermal data, protection and diagnostic functions, switching time waveforms, truth tables, and mechanical dimensions. It also shows typical application circuits with reverse‑battery protection using a Schottky diode.
| Continuous Output Current | 14 A @ 85 °C |
|---|---|
| Drain‑Source Breakdown Voltage | 40 V |
| Supply Voltage Range | 6 V – 13 V – 26 V |
| Junction‑to‑Case Thermal Resistance | 1.65 °C/W (max) |
| Junction‑to‑Ambient Thermal Resistance | 60 °C/W (max) |
| Input Low Level Voltage | 1.5 V |
| Input High Level Voltage | 3.5 V |
The device can continuously source 14 A per channel at a junction temperature of 85 °C.
The relay operates with a supply voltage between 6 V and 26 V, with a typical value of 13 V.
