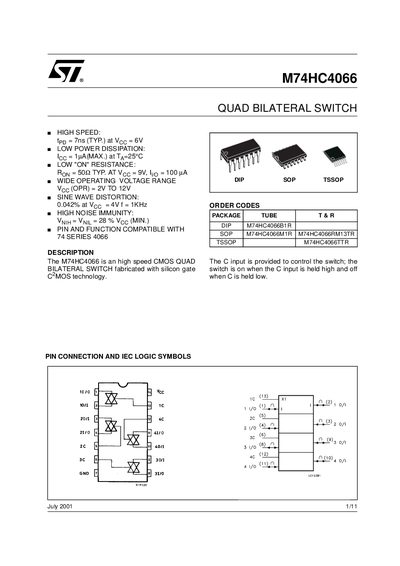

The M74HC4066 is an high speed CMOS QUAD BILATERAL SWITCH fabricated with silicon gate C2MOS technology. The C input is provided to control the switch; the switch is on when the C input is held high and off when C is held low.
The M74HC4066 is a high‑speed CMOS quad bilateral switch fabricated with silicon‑gate CMOS technology. It offers low on‑resistance, wide operating voltage range (2 V to 12 V), and high noise immunity, making it suitable for a variety of analog switching applications.
The document lists absolute maximum ratings, recommended operating conditions, DC and AC electrical characteristics, capacitance data, and mechanical dimensions for both DIP‑14 and TSSOP‑14 packages. It also includes typical performance graphs and test circuit diagrams.
| Supply voltage range (operating) | 2 V to 12 V |
|---|---|
| Maximum supply voltage (absolute) | 13 V |
| Propagation delay (typical) | 7 ns at VCC = 6 V |
| Power dissipation (max) | 500 mW at 65 °C |
| Operating temperature range | -55 °C to 125 °C |
The absolute maximum supply voltage is 13 V.
The recommended operating temperature range is –55 °C to 125 °C.
The typical propagation delay is 7 ns at VCC = 6 V.
