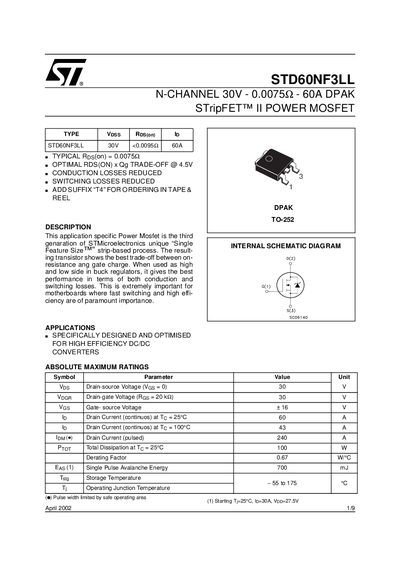

The document describes the features and characteristics of the STD60NF3LL N-CHANNEL 30V - 0.0075Ω - 60A DPAK STripFET™ II POWER MOSFET, released on April 9, 2002.
The STD60NF3LL is a 30 V N‑channel Power MOSFET offered in a DPAK (TO‑252) package. It features a low typical on‑resistance of 0.0075 Ω and a high continuous drain current of 60 A, making it suitable for high‑efficiency DC‑DC converters and motherboard power stages.
The document provides absolute maximum ratings, thermal characteristics, electrical parameters, switching performance, mechanical dimensions, and packaging options (bulk, tape & reel). Legal disclaimer and worldwide distribution information are included at the end.
| Total Power Dissipation (PD) | 100 W |
|---|---|
| Output Capacitance (Coss) | 635 pF |
