BTB04-600SL is a 4A TRIAC from ST Microelectronics with a rated current of 4A and a voltage rating of 600V. This TRIAC features a high surge current capability and is suitable for applications such as lighting, corded power tools, and industrial.
The BTB04-600SL is a four‑quadrant TRIAC intended for general‑purpose applications that require high surge‑current capability, such as lighting, corded power tools and industrial equipment. It features a gate‑current sensitivity of 10 mA and is supplied in a TO‑220AB package.

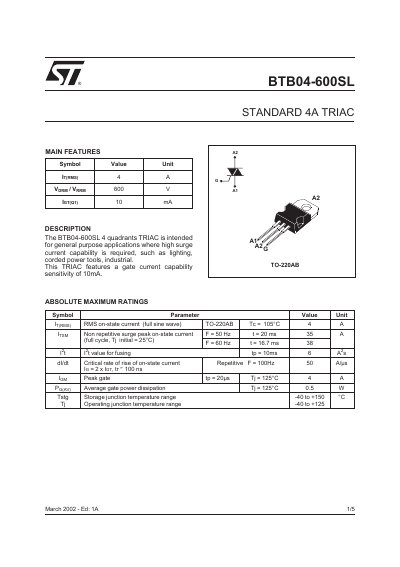

The sheet lists key parameters including a 4 A RMS on‑state current, 600 V voltage rating, thermal resistances of 3 °C/W (junction‑to‑case) and 60 °C/W (junction‑to‑ambient), and mechanical dimensions of the TO‑220AB package. Additional data cover surge ratings, dV/dt and dI/dt limits, and ordering information.
| On‑state RMS current (IT RMS) | 4 A |
|---|---|
| Gate trigger current (IGT) | 10 mA |
| Voltage rating (VDRM/VRRM) | 600 V |
| Junction‑to‑case thermal resistance (Rth j‑c) | 3 °C/W |
| Junction‑to‑ambient thermal resistance (Rth j‑a) | 60 °C/W |
| Package type | TO‑220AB |
| I²t rating | 6 A·s |
| dV/dt rating | 75 V/µs |
| dI/dt rating | 1.8 A/ms |
The BTB04‑600SL can handle up to 4 A RMS on‑state current.
It is rated for a maximum voltage of 600 V (VDRM/VRRM).
The device is supplied in a TO‑220AB plastic package.
