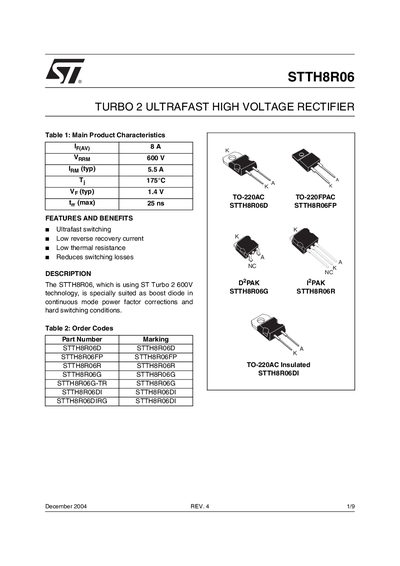

This document describes the features and benefits of the STTH8R06 series ultrafast high voltage rectifiers, including ultrafast switching, low reverse recovery current, and low thermal resistance.
The STTH8RO6 is a Turbo 2 600 V ultrafast high‑voltage rectifier designed for boost diode applications in power‑factor correction and hard‑switching circuits. It offers low reverse‑recovery current, low thermal resistance and fast switching performance.
The document provides detailed electrical ratings, thermal characteristics, package dimensions, ordering information and mechanical data for the various TO‑220, DPAK and PAK variants.
| Maximum operating junction temperature (Tj) | 175 °C |
|---|
The recommended torque is 0.8 m·N for the TO‑220FPAC package.
