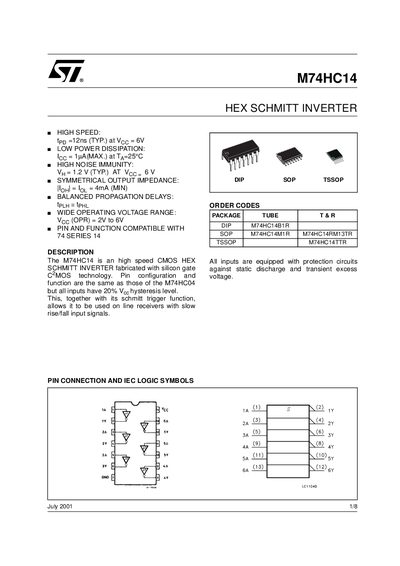

M74HC14 is a high speed CMOS hex SCHMITT INVERTER fabricated with silicon gate C2MOS technology. Pin configuration and function are the same as those of the M74HC04 but all inputs have 20% Vcc hysteresis level. This, together with its schmitt trigger function, allows it to be used on line receivers with slow rise/fall input signals. All inputs are equipped with protection circuits against static discharge and transient excess voltage.
The M74HC14 is a high‑speed CMOS hex Schmitt‑trigger inverter fabricated with silicon‑gate CMOS technology. All inputs feature protection against static discharge and transient over‑voltage, and the device offers a wide operating voltage range of 2 V to 6 V.
The document provides absolute maximum ratings, recommended operating conditions, DC and AC electrical characteristics, capacitive parameters, and detailed mechanical data for DIP‑14, SOIC‑14, and TSSOP‑14 packages.
| Supply voltage (absolute maximum) | -0.5 V to +7 V |
|---|---|
| Power dissipation | 500 mW at 65 °C |
| Operating temperature range | -55 °C to 125 °C |
The device can tolerate a supply voltage from –0.5 V to +7 V before damage may occur.
