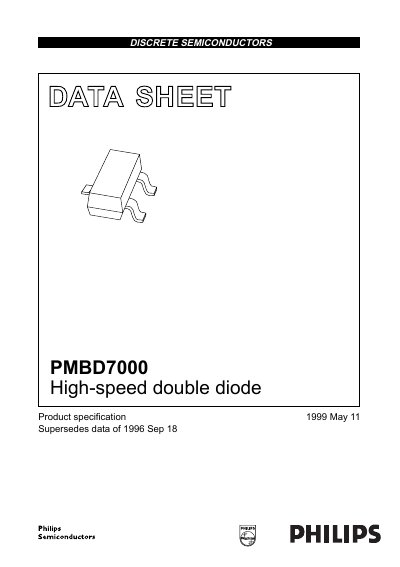

PMBD7000 is a high-speed double diode produced by Philips. It is packaged in a SOT23 plastic SMD package. The maximum reverse voltage is 100V and the maximum reverse repeated peak current is 450mA.
The PMBD7000 is a high‑speed double diode offered by Philips Semiconductors. It consists of two fast switching diodes connected in series and is supplied in a small plastic SMD package (SOT23, 3‑lead). The component is intended for high‑speed switching in surface‑mounted circuits.
The datasheet lists the electrical and thermal characteristics, including a continuous reverse voltage of 100 V, a repetitive peak forward current of 450 mA, a reverse recovery time of 4 ns, and a typical diode capacitance of 1.5 pF. Limiting values and thermal resistance are also provided, along with package dimensions and contact information for Philips Semiconductors worldwide.
| Continuous reverse voltage (max) | 100 V |
|---|---|
| Repetitive peak forward current (max) | 450 mA |
| Forward voltage at 10 mA | 670‑820 mV |
| Thermal resistance junction‑to‑ambient | 500 K/W |
The device can withstand a continuous reverse voltage of up to 100 V.
It is supplied in a small plastic SMD package, SOT23, with three leads.
No, the product is not designed for use in life‑support appliances or systems.
