This document describes the absolute maximum ratings and thermal characteristics of the NPN general purpose amplifiers MMBTA06 MPSA06 PZTA06. These devices are designed for general purpose amplifier applications with a maximum collector current of 300mA.

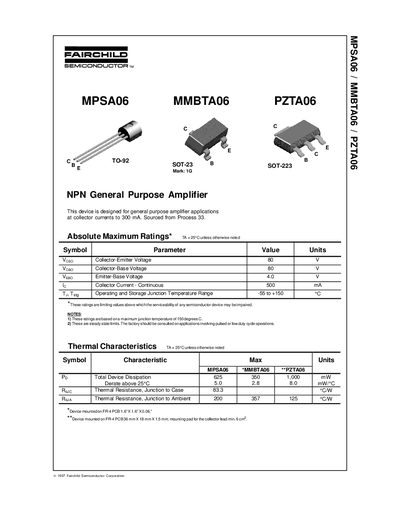

The MPSA06, MMBTA06 and PZTA06 are NPN general‑purpose amplifier transistors designed for collector currents up to 300 mA. The datasheet lists absolute maximum ratings, thermal characteristics and typical performance curves.
Packaging information includes TO‑92 and SOT‑23 variants with detailed mechanical dimensions, tape‑and‑reel options, and recommended handling procedures.
| Collector‑Emitter Voltage (VCEO) | 80 V |
|---|---|
| Collector‑Base Voltage (VCBO) | 80 V |
| Emitter‑Base Voltage (VEBO) | 4.0 V |
| Continuous Collector Current (IC) | 500 mA |
| Junction Temperature Range | -55 °C to +150 °C |
| Total Device Dissipation (MPSA06) | 625 mW |
| Thermal Resistance, Junction‑to‑Case | 83.3 °C/W |
| TO‑92 Package Weight | 0.1977 g |
| TO‑92 Package Width | 0.060 in (1.52 mm) |
The datasheet specifies a continuous collector current of 500 mA.
Both the collector‑emitter and collector‑base voltage ratings are 80 V.
The emitter‑base breakdown voltage is rated at 4.0 V.
The TO‑92 package is 0.060 in (1.52 mm) wide, with a part weight of 0.1977 g.
