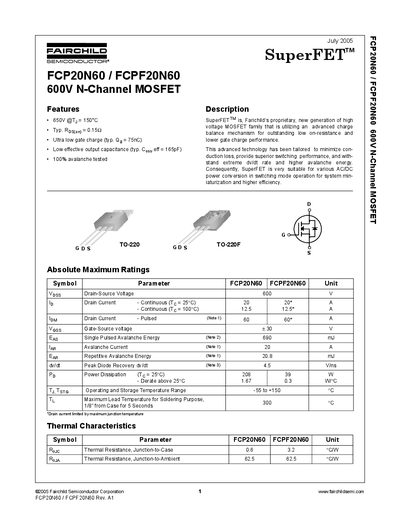

This datasheet provides detailed information on Fairchild FCP20N60 / FCPF20N60 600V N-Channel MOSFET SuperFETTM features and characteristics.
The FCP20N60 and FCPF20N60 are 600 V N‑Channel MOSFETs from Fairchild Semiconductor’s SuperFET™ family. They feature ultra‑low gate charge (typ. Qg ≈ 75 nC) and low on‑resistance, making them suitable for high‑efficiency AC/DC power conversion.
The document provides absolute maximum ratings, detailed electrical characteristics, thermal resistance values, mechanical package dimensions, and test circuit waveforms. It also includes product status definitions and trademark information.
| Drain‑Source Voltage (VDS) | 600 V |
|---|---|
| Typical On‑Resistance (RDS(on)) | 9.152 mΩ |
| Junction‑to‑Case Thermal Resistance | 0.6 °C·W |
| Junction‑to‑Ambient Thermal Resistance | 62.5 °C·W |
| Effective Output Capacitance (COSS,eff) | 165 pF |
The maximum drain‑source voltage is 600 V.
The junction‑to‑case thermal resistance is 0.6 °C·W.
