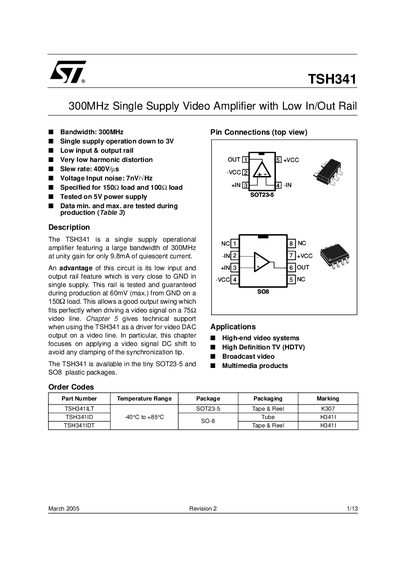

STMicroelectronics TSH341 300MHz Single Supply Video Amplifier Service Manual

The TSH341 is a single supply operational amplifier featuring a large bandwidth of 300MHz at unity gain for only 9.8mA of quiescent current.

Brand: STMicroelectronics
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 13
File format: PDF
File size: 342 KB
Published: 11 April, 2012
Updated: 30 September, 2023
Model: TSH341
MD5 checksum: 31878D9759F165C1D2772B2CD047E14D
PDF: STMicroelectronics TSH341 300MHz Single Supply Video Amplifier Service Manual PDF

About this manual

The TSH341 is a single‑supply operational amplifier designed for high‑end video systems. It offers a 300 MHz bandwidth, low input and output rail close to ground, and a low harmonic distortion, making it suitable for driving 75 Ω video lines.

The document contains detailed electrical specifications, absolute maximum ratings, mechanical package dimensions, and information on evaluation boards. It also includes a revision history and legal disclaimer from STMicroelectronics.

What's inside

Description
Pin Connections
Applications
Absolute Maximum Ratings
Electrical Characteristics
Evaluation Boards
Package Mechanical Data
Revision History

Specifications

Bandwidth	300 MHz
Supply voltage range	3 V – 6 V
Slew rate	400 V/µs
Input noise voltage	7 nV/√Hz

Frequently asked questions

What is the maximum supply voltage for the TSH341?

The device can be powered up to 6 V.
