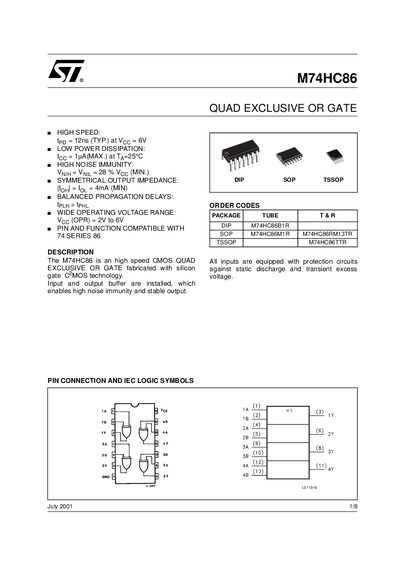

This document describes the features and characteristics of the M74HC86 high-speed CMOS quad exclusive OR gate, including high speed, low power dissipation, high noise immunity, symmetrical output impedance, balanced propagation delays, and wide operating voltage range.
The M74HC86 is a high‑speed CMOS quad exclusive‑OR gate with a wide operating voltage range of 2 V to 6 V. It features low power dissipation, high noise immunity, and symmetrical output impedance suitable for digital logic applications.
The document provides detailed pin descriptions, absolute maximum ratings, recommended operating conditions, DC and AC electrical characteristics, as well as mechanical dimensions for DIP‑14, SOIC‑14, and TSSOP‑14 packages.
| Typical propagation delay (tpp) at VCC=6 V | 12 ns |
|---|---|
| Supply voltage range (VCC) | 2 V to 6 V |
| High noise immunity (Vain = Vii) | 28 % VCC (min) |
| Maximum power dissipation | 500 mW at 65 °C |
The typical propagation delay is 12 ns when powered at 6 V.
It operates from 2 V up to 6 V.
The device can dissipate up to 500 mW at 65 °C (derated to 300 mW at higher temperatures).
