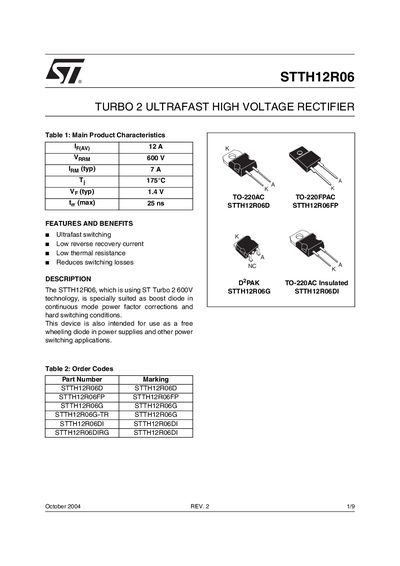

The document provides information about the main product characteristics of the STTH12R06 Turbo 2 ultrafast high voltage rectifier, including rated current, reverse voltage, forward voltage, reverse recovery current, etc.
The STTH12R06 is a Turbo 2 600 V ultrafast high‑voltage rectifier designed for boost diode use in continuous‑mode power‑factor correction and hard‑switching applications. It offers low reverse‑recovery current, low thermal resistance, and reduced switching losses, making it suitable for free‑wheeling diode roles in power supplies and other switching circuits.
The device is offered in several TO‑220 and DPAK packages (TO‑220AC, TO‑220FPAC, DPAK, etc.) with detailed mechanical dimensions, thermal resistance values, and recommended mounting torques. Comprehensive electrical ratings such as forward voltage drop, reverse recovery time, and absolute maximum ratings are listed in the datasheet.
| Maximum repetitive peak reverse voltage (V_RRM) | 600 V |
|---|---|
| Maximum forward current (I_F(av)) | 12 A |
| Forward voltage drop (V_F) at 12 A | 2.9 V (typ) |
| Reverse recovery time (t_rr) | 25 ns (typ) |
| Maximum junction temperature (T_J) | 175 °C |
| Thermal resistance junction‑to‑case (RθJC) TO‑220AC | 1.7 °C/W |
| Recommended mounting torque (TO‑220FPAC) | 0.8 mN·m |
The device can withstand a repetitive peak reverse voltage of 600 V.
The recommended torque is 0.8 mN·m for the TO‑220FPAC package and 0.55 mN·m for the TO‑220AC package.
At 12 A forward current, the typical forward voltage drop is 2.9 V.
The typical reverse recovery time is 25 ns.
