STPS2030CT/CG/CR is a 3A low voltage diode produced by ST. It is suitable for switch mode power supply and high frequency DC to DC converter. This device is packaged in TO-220AB, D2PAK and I2PAK, and is intended for use in low voltage high frequency inverters, free wheeling and polarity protection applications.

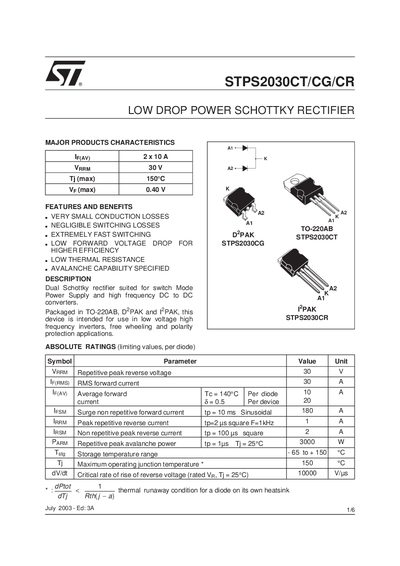

The STPS2030CT/CG/CR series are low‑drop power Schottky rectifiers offered in TO‑220AB, D²PAK and 2PAK packages. They provide very small conduction losses, negligible switching losses, and high efficiency for low‑voltage high‑frequency applications.
The document lists major product characteristics, absolute ratings, thermal resistances, static electrical characteristics, mechanical dimensions, and ordering information, along with safety and handling notes.
| Average forward current (IF(av)) | 2 × 10 A |
|---|---|
| Repetitive peak reverse voltage (VrrM) | 30 V |
| Maximum forward voltage drop (Ve max) | 0.40 V |
| Recommended mounting torque | 0.55 N·m |
The device is rated for a repetitive peak reverse voltage of 30 V.
The recommended torque value is 0.55 N·m.
