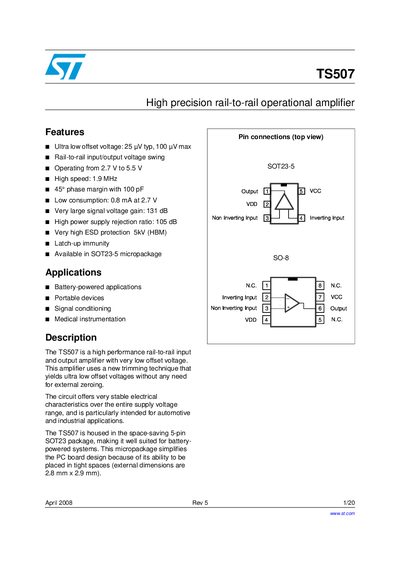

TS507 is a high precision rail-to-rail operational amplifier with features including ultra low offset voltage, rail-to-rail input/output voltage swing, operating voltage range from 2.7V to 5.5V, high speed of 1.9MHz, low power consumption of 0.8mA, very large signal voltage gain of 131dB, high power supply rejection ratio of 105dB, 5kV ESD protection, latch-up immunity, etc. It is suitable for battery-powered applications, portable devices, signal conditioning, and medical instrumentation.
The TS507 is a high‑performance rail‑to‑rail input and output operational amplifier with ultra‑low offset voltage, low power consumption, and a large signal gain of 131 dB. It is offered in a compact 5‑pin SOT23‑5 package (and an SO‑8 option) for battery‑powered and space‑constrained designs, targeting automotive and industrial applications.
The document contains absolute maximum ratings, detailed electrical characteristics (including gain‑bandwidth product, phase margin, and supply current), package information, ordering codes, and revision history, together with application notes on compensation techniques.
| Supply voltage range | 2.7 V to 5.5 V |
|---|---|
| Input offset voltage (typical) | 25 µV |
| Large signal voltage gain | 131 dB |
| Supply current (typical) | 0.8 mA at 2.7 V |
| Gain‑bandwidth product | 1.9 MHz |
| Maximum supply voltage (Voc) | 6 V |
The maximum supply voltage (Voc) is 6 V.
The TS507 is offered in SOT23‑5 and SO‑8 packages.
Typical input offset voltage is 25 µV.
It operates from –40 °C to +125 °C (automotive grade) and can be stored from –65 °C to +150 °C.
