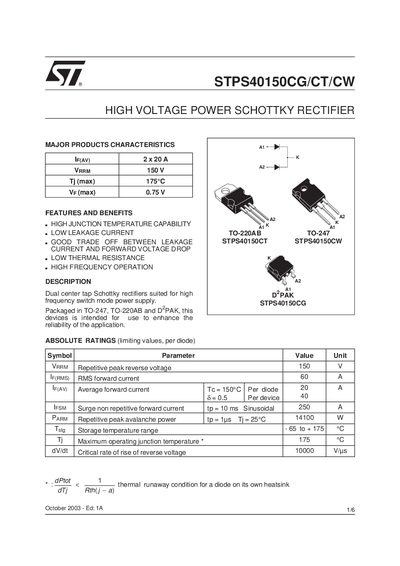

This is a dual center tap Schottky rectifier suitable for high frequency switch mode power supply. It features high junction temperature capability, low leakage current, good trade off between leakage current and forward voltage drop, low thermal resistance and high frequency operation.
The STPS40150 series are high‑voltage power Schottky rectifiers offered in TO‑247, TO‑220AB and D2PAK packages. They provide low leakage, low forward voltage drop and high‑frequency operation suitable for switch‑mode power supplies.
The document lists absolute ratings, static electrical characteristics, thermal resistance data, mechanical dimensions and ordering information for the CG, CT and CW variants of the device.
| Repetitive peak reverse voltage (VRRM) | 150 V |
|---|---|
| Maximum forward voltage drop (VF max) | 0.75 V |
The device can withstand a repetitive peak reverse voltage of 150 V.
The rectifier is offered in TO‑247, TO‑220AB and D2PAK packages.
