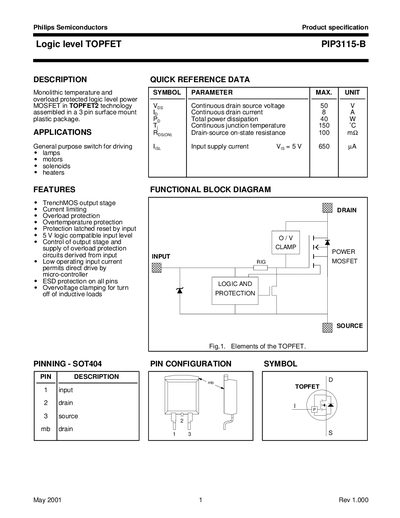

TOPFET PIP3115-B is a logic level MOSFET device from Philips Semiconductors, with a rated voltage of 50 V and a rated current of 8 A. The package type is SOT404.
The PIP3115-B is a logic‑level, overload‑protected power MOSFET in TOPFET2 technology, intended for general‑purpose switching of lamps, motors, solenoids, and heaters. It operates from a 5 V logic input and includes built‑in overtemperature, overload, and ESD protection.
Key electrical ratings include a 50 V drain‑source voltage, 8 A continuous drain current, 40 W total power dissipation, and a 150 °C junction temperature. The device features low input current (≈100 µA at 5 V), fast switching times, and a compact SOT‑404 surface‑mount package.
| Drain‑source voltage (VDS) | 50 V |
|---|---|
| Continuous drain current (ID) | 8 A |
| Total power dissipation (PD) | 40 W |
| Junction temperature (TJ) | 150 °C |
| Input supply current (normal operation) | 100 µA (Vs=5 V) |
| ESD rating (HBM) | 2 kV |
| Package type | SOT‑404, 3‑lead surface‑mount |
The device is rated for a continuous drain‑source voltage of 50 V.
It can conduct up to 8 A continuously.
The total power dissipation limit is 40 W.
The normal‑operation input current is about 100 µA when powered at 5 V.
