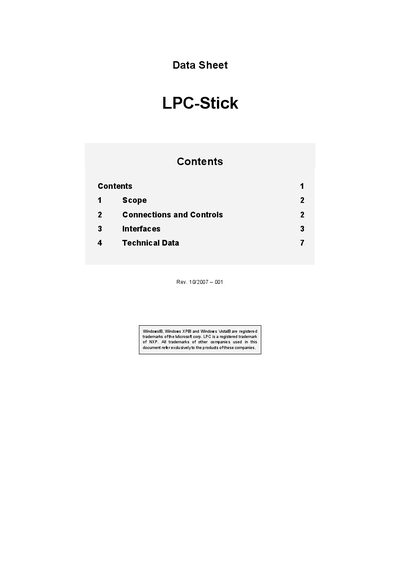

This data sheet is for the LPC-Stick debugger system. It contains architecture- and device-specific information and all technical data of the system.
The LPC‑Stick is a USB‑bus powered debugger system that emulates the LPC2468 microcontroller and provides a full‑speed USB 2.0 interface. It includes user‑controllable LEDs, a set of connector pins for I/O, and can be used with a powered USB hub.
The data sheet lists the pin assignments, power consumption limits, mechanical dimensions, operating temperature range, and supported I/O voltage levels, giving developers the information needed to integrate the LPC‑Stick into their hardware and software environments.
| Power supply | USB bus powered (4.2V to 5.0V) |
|---|---|
| Maximum power consumption | 1.5 W |
| Maximum current draw | 300 mA |
| Weight | 38 g |
| Operating temperature | 5 to 40°C |
| Storage temperature | -20°C to +65°C |
| USB transfer rate | 12 Mbit/s (full‑speed) |
| I/O voltage level | 3.3 V (+10%) |
