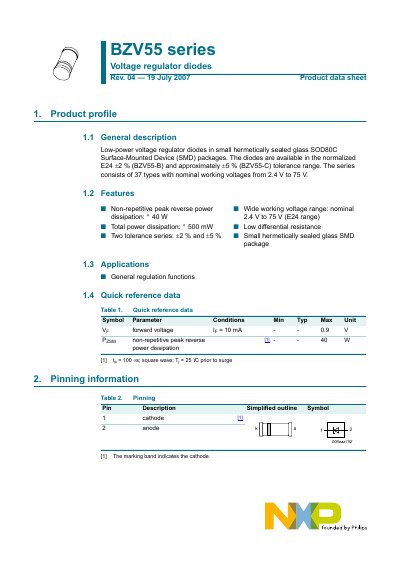

The BZV55 series is a low-power voltage regulator diode in a small hermetically sealed glass SOD80C Surface-Mounted Device (SMD) package. The diodes are available in the normalized E24 ±2 % (BZV55-B) and approximately ±5 % (BZV55-C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
The BZV55 series from NXP consists of low‑power voltage regulator diodes packaged in hermetically sealed glass SOD80C surface‑mounted devices. Two tolerance options (+2 % and +5 %) are offered, covering nominal working voltages from 2.4 V to 75 V.
The data sheet includes features, electrical characteristics such as forward voltage and reverse power ratings, thermal resistance, package dimensions, ordering codes, marking conventions, and legal information. It also lists packing methods and contact details for NXP sales offices.
| Forward voltage (typ) at 10 mA | 0.9 V |
|---|---|
| Total power dissipation (typ) | < 500 mW |
| Maximum forward current | 250 mA |
| Storage temperature range | -65 °C to +200 °C |
| Junction temperature range | -65 °C to +200 °C |
The typical forward voltage is 0.9 V at a test current of 10 mA.
Storage temperature is specified from –65 °C up to +200 °C.
The series consists of 37 different diode types.
