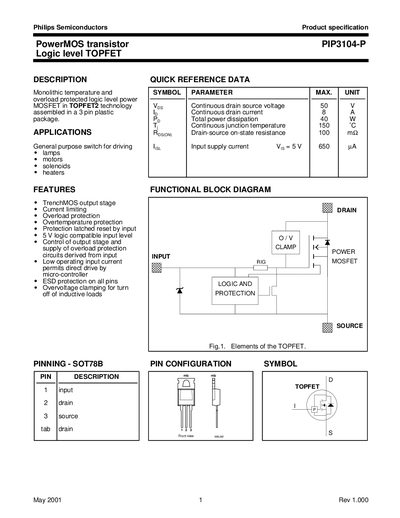

This document is a detailed description of the Philips Semiconductors PIP3104-P Logic level TOPFET product, including its functions, features, and parameters.
The PIP3104-P is a logic‑level PowerMOS transistor (TOPFET) designed for general‑purpose switching of lamps, motors, solenoids, and heaters. It features a 3‑pin plastic SOT‑78B package with overload, overtemperature, ESD, and overvoltage protection built into the device.
Key specifications include a continuous drain‑source voltage of 50 V, continuous drain current of 8 A, and a total power dissipation of 40 W. The device operates with a 5 V logic input, draws low input current, and provides fast switching times suitable for inductive load turn‑off.
| Continuous drain‑source voltage (Vds) | 50 V |
|---|---|
| Continuous drain current (Id) | 8 A |
| Total power dissipation (Pd) | 40 W |
| Continuous junction temperature (Tj) | 150 °C |
| Drain‑source on‑state resistance (Rds(on)) | 100 mΩ |
| Input supply current (Vs=5 V) | 650 µA |
The device can handle a continuous drain current of up to 8 A.
The logic input is compatible with a 5 V level.
