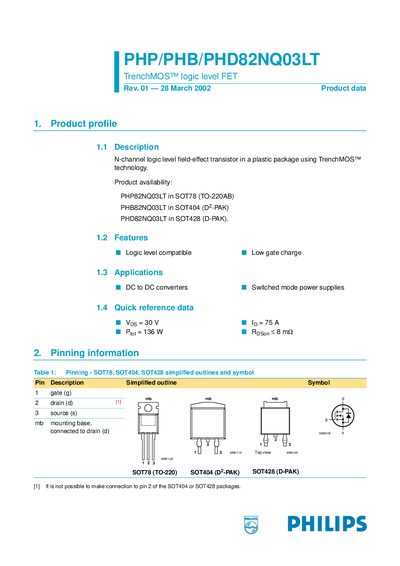

PHP/PHB/PHD82NQ03LT TrenchMOS™ logic level FET is a logic level compatible, low gate charge, voltage range of 30V, current range of 75A power MOSFET.
The PHP/PHB/PHD82NQ03LT series are N‑channel logic‑level field‑effect transistors offered in three plastic packages: SOT78 (TO‑220AB), SOT404 (D2‑PAK) and SOT428 (D‑PAK). They are intended for use in DC‑DC converters and switched‑mode power supplies.
The datasheet lists key parameters such as a maximum drain‑source voltage of 30 V, a continuous drain current of 25 A, typical on‑state resistance around 0.008 Ω, and detailed capacitance and thermal resistance values. Pin configurations, characteristic curves and limiting values are also provided.
| Maximum drain‑source voltage (Vds) | 30 V |
|---|---|
| Output capacitance (Coss) | 480 pF |
| Reverse transfer capacitance (Crss) | 165 pF |
| Junction‑to‑case thermal resistance (RθJC) | 1.1 K/W |
| Junction‑to‑ambient thermal resistance (RθJA) for SOT78 | 60 K/W |
The device is rated for a maximum drain‑source voltage of 30 V.
The series is offered in SOT78 (TO‑220AB), SOT404 (D2‑PAK) and SOT428 (D‑PAK) packages.
