BCV62 is a PNP double transistor produced by PHILIPS company. This product has the characteristics of low current (max. 100 mA), low voltage (max. 30 V) and matched pair. It is widely used in applications where the working point must be independent of temperature, such as current mirrors.

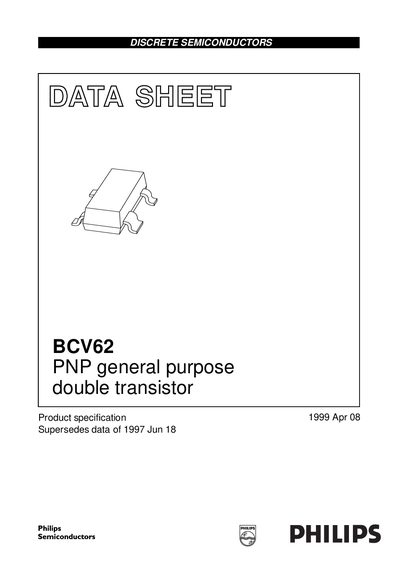

The BCV62 is a PNP general‑purpose double transistor offered by Philips Semiconductors. It is supplied in a SOT143B surface‑mounted package with four leads and is intended for applications requiring temperature‑independent working points, such as current mirrors.
Key electrical limits include a maximum collector current of 100 mA, a collector‑emitter voltage rating of –30 V, and a power dissipation capability of 250 mW. The device operates over a storage temperature range of –65 °C to +150 °C and has a thermal resistance of 500 K/W when mounted on an FR4 PCB.
| Maximum collector current (Ic) | 100 mA |
|---|---|
| Maximum collector‑emitter voltage (Vce) | -30 V |
| Storage temperature range | -65 to +150 °C |
The BCV62 can handle up to 100 mA of collector current.
No, the BCV62 is not designed for use in life‑support appliances or systems.
