PHK5NQ15T is a N-channel enhancement mode field effect transistor produced by Philips Semiconductors. It features low on-state resistance and is suitable for DC-DC primary side switching and general purpose switching.

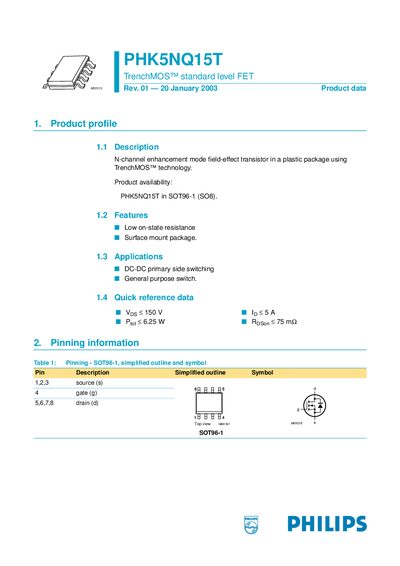

The PHK5NQ15T is an N‑channel enhancement mode field‑effect transistor implemented with TrenchMOS technology and supplied in a plastic SOT96‑1 (SO8) package. The datasheet outlines its description, key features such as low on‑state resistance, and typical applications like DC‑DC primary side switching and general purpose switching.
Detailed sections present pin configurations, limiting electrical values, thermal characteristics, and dynamic parameters. Graphs illustrate safe operating area, transfer characteristics, and on‑state resistance across temperature and current ranges, enabling designers to assess suitability for their circuits.
| Package type | SOT96‑1 (SO8) plastic |
|---|
The transistor is supplied in a plastic SOT96‑1 (SO8) package.
