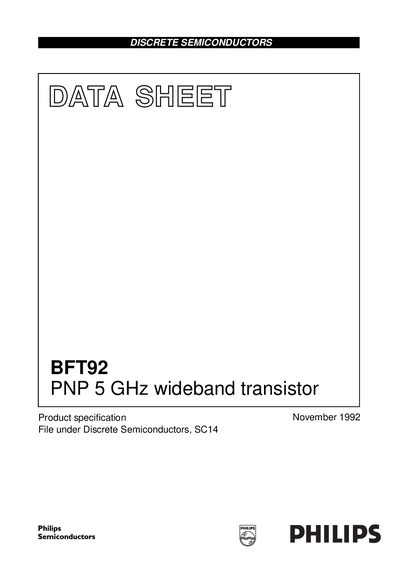

BFT92 is a PNP type 5GHz wideband transistor produced by Philips Semiconductors, which is suitable for RF wideband amplifiers, antenna amplifiers, radar systems, oscilloscopes, spectrum analyzers, etc. The transistor features low distortion and high power gain; due to its very high transition frequency, it also has excellent wideband properties and low noise up to high frequencies.
The BFT92 is a PNP wideband transistor intended for RF broadband amplifiers, radar systems, oscilloscopes, spectrum analyzers and similar high‑frequency applications. It offers low intermodulation distortion, high power gain and low noise up to very high frequencies.
The device is supplied in a plastic SOT23 surface‑mount package with three leads. Key electrical limits include a collector‑base voltage of –20 V, collector‑emitter voltage of –15 V, a maximum collector current of 25 mA, and a total power dissipation of 300 mW. Its transition frequency reaches up to 5 GHz, and it provides a typical unilateral gain of 18 dB.
| Collector current (Ic) max | 25 mA |
|---|---|
| Transition frequency (fT) typical | 5 GHz |
The transistor’s transition frequency reaches up to 5 GHz.
Storage temperature is –65 °C to 150 °C and junction temperature up to 175 °C.
